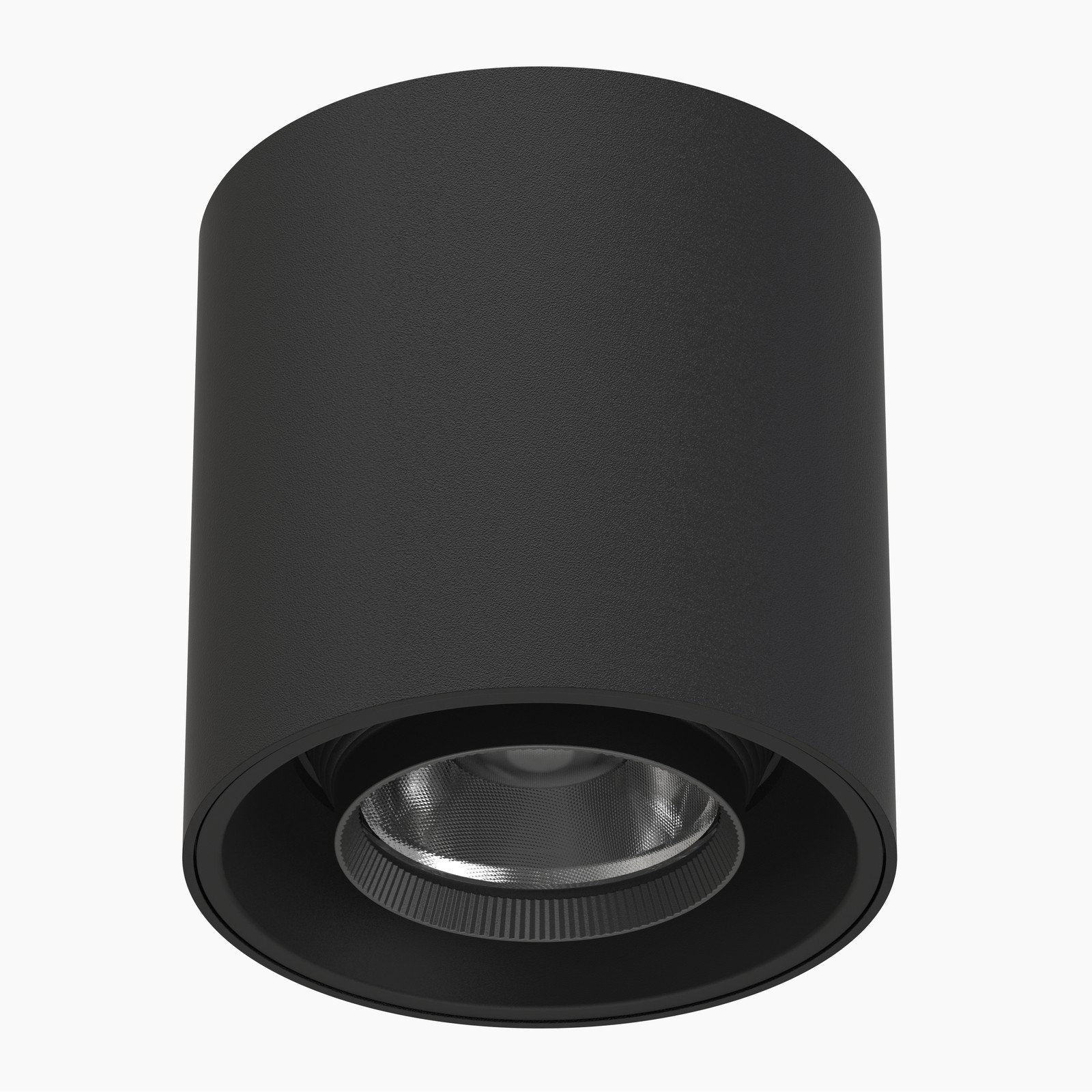

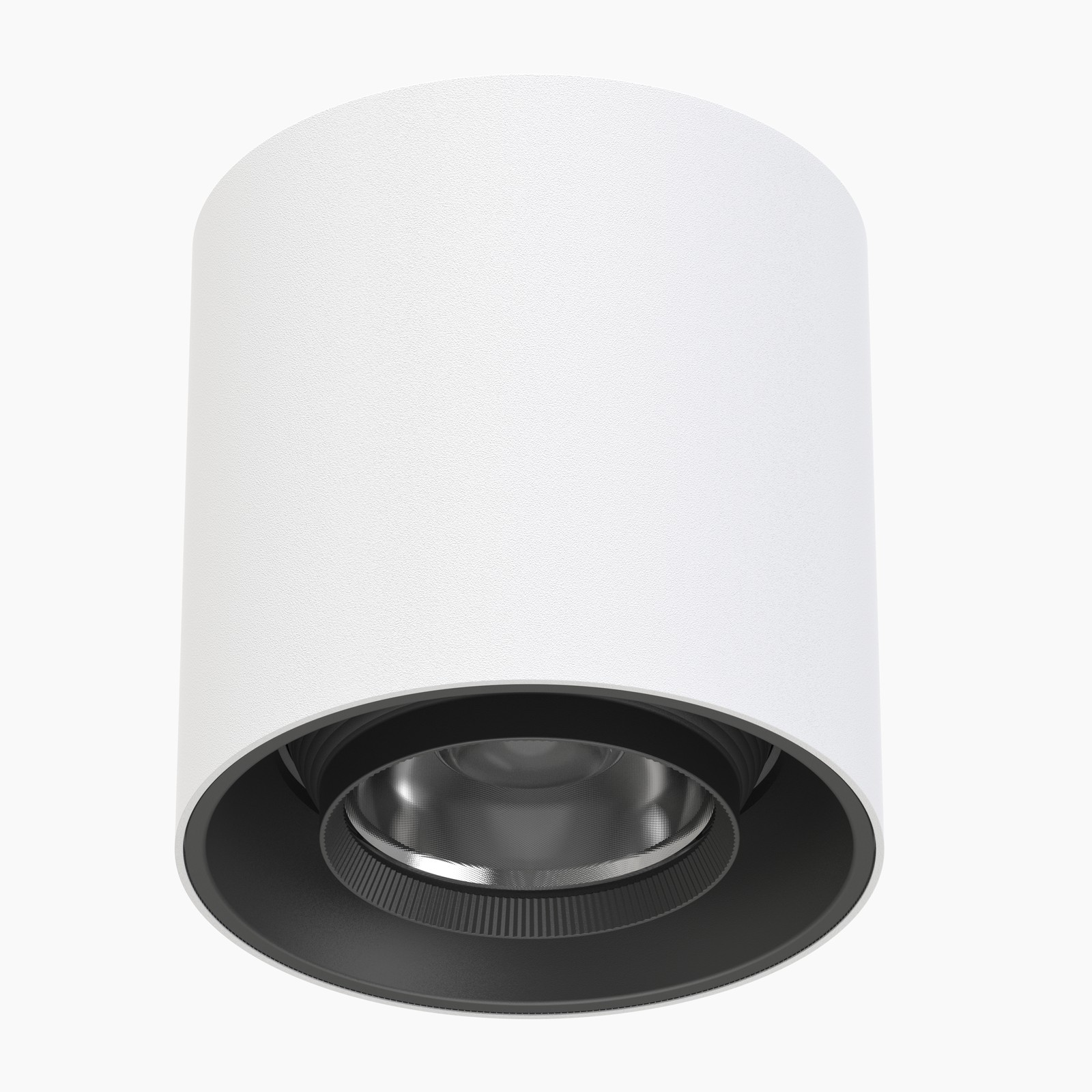

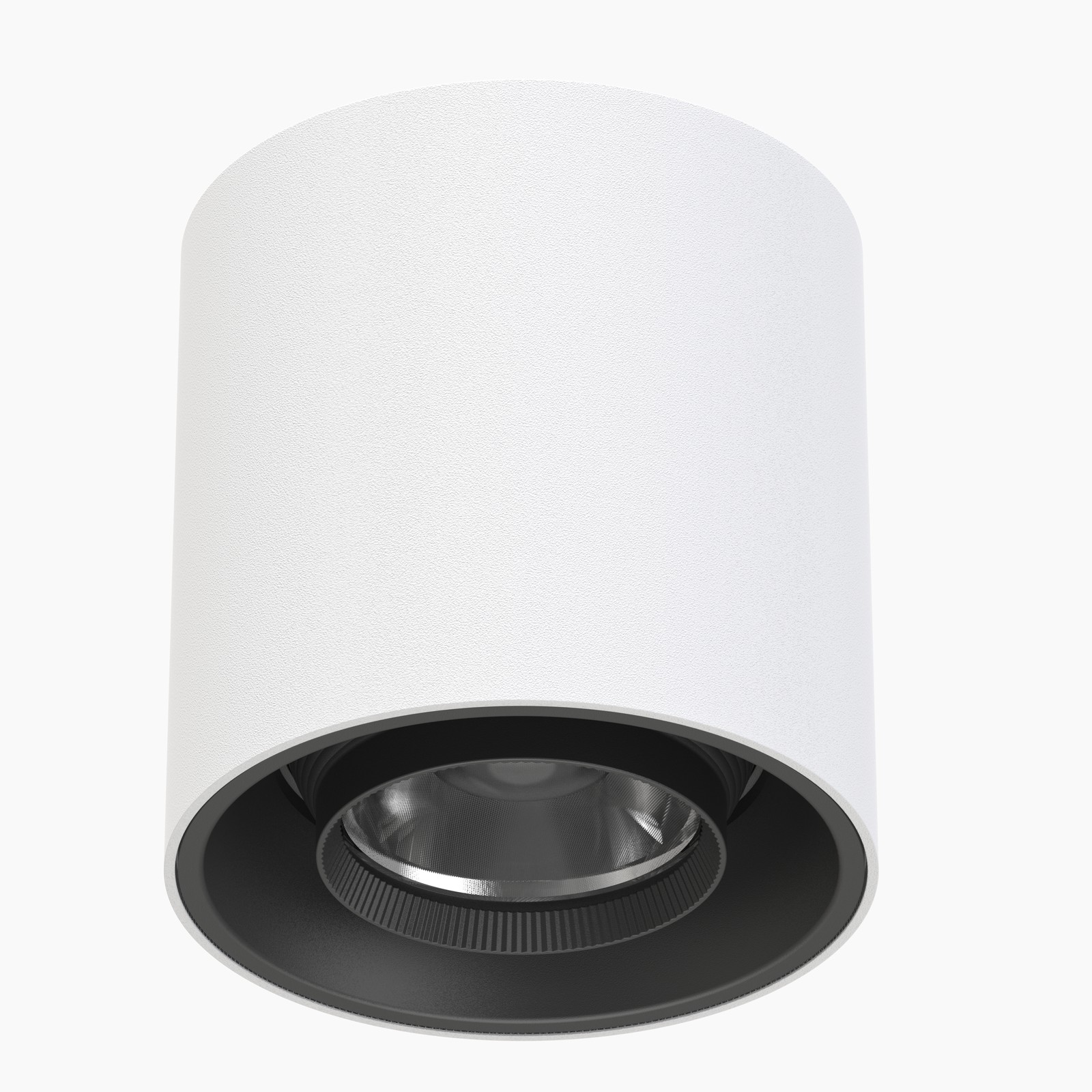

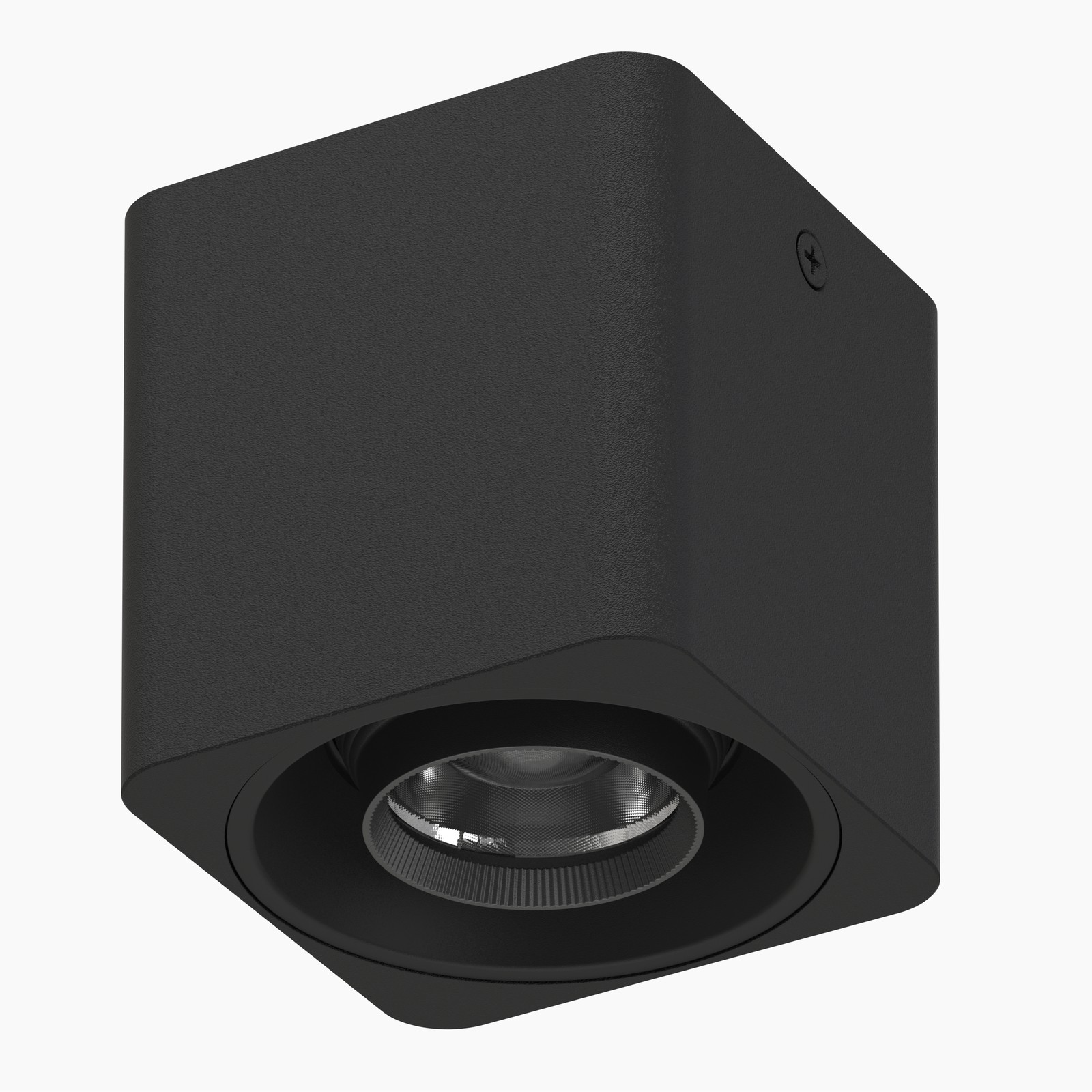

Surface Mounted Downlight
- 10-28W / Round 10-25W·Square 12-28W
- Round Φ74-111×H75-110 / Square 73×73-113×113
- 15-24-36°

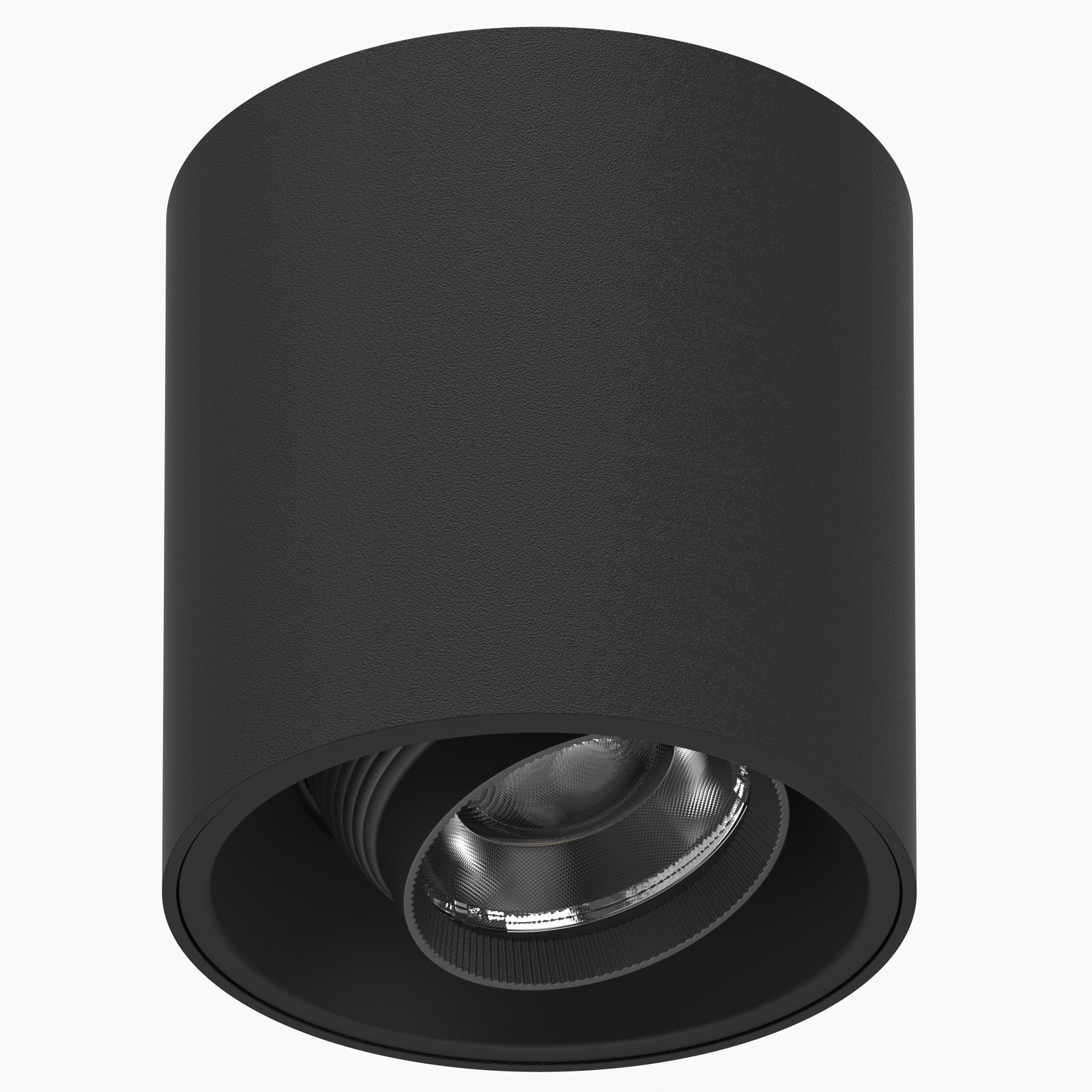

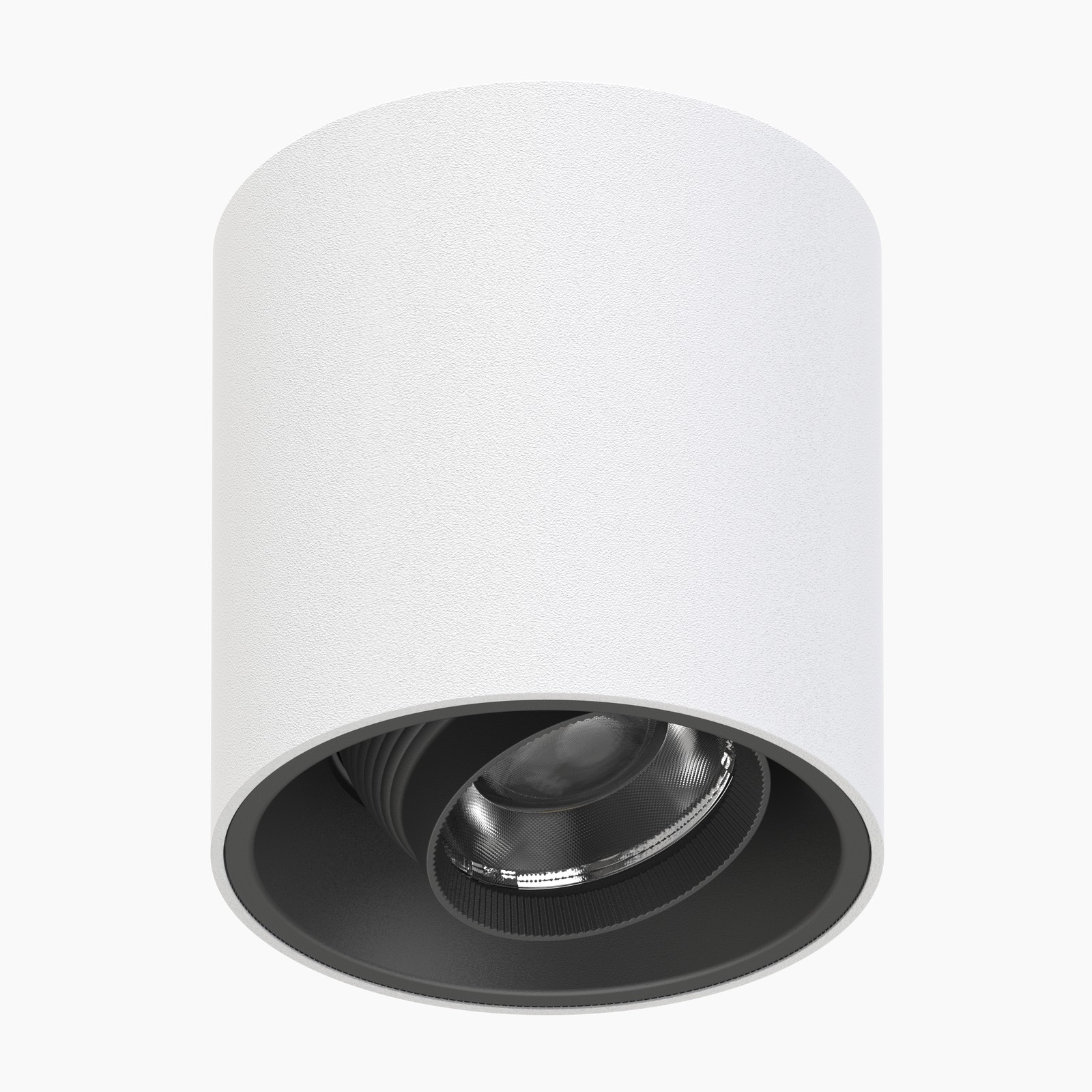

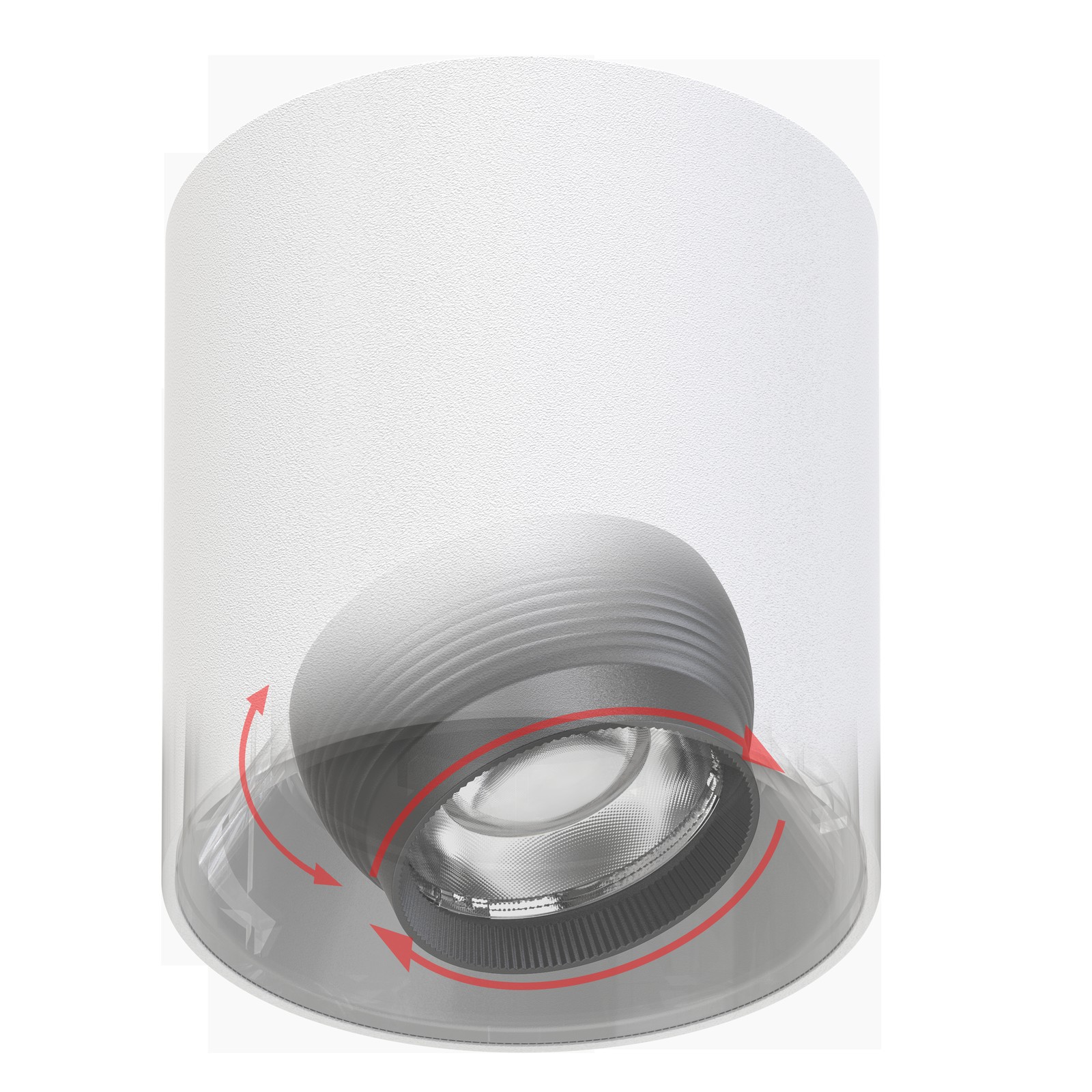

- Fixed / Swivel (adjustable side-to-side)
- Description: Surface mounted downlight series with no cutout required, round or square design, white or sand-black finish, fixed or swivel adjustable versions. Round 10W-25W (Φ74-111mm), square 12W-28W (73×73-113×
- Inquiry Now
Product Details
Features
No-cutout design for fast, simple installation on ceilings without suspended structure. Round and square designs in white or sand-black, with fixed and swivel versions for flexible lighting layouts. Anti-glare optics deliver soft light; aluminum body ensures good heat dissipation.
Specifications
| Series | W Series Surface Downlight |

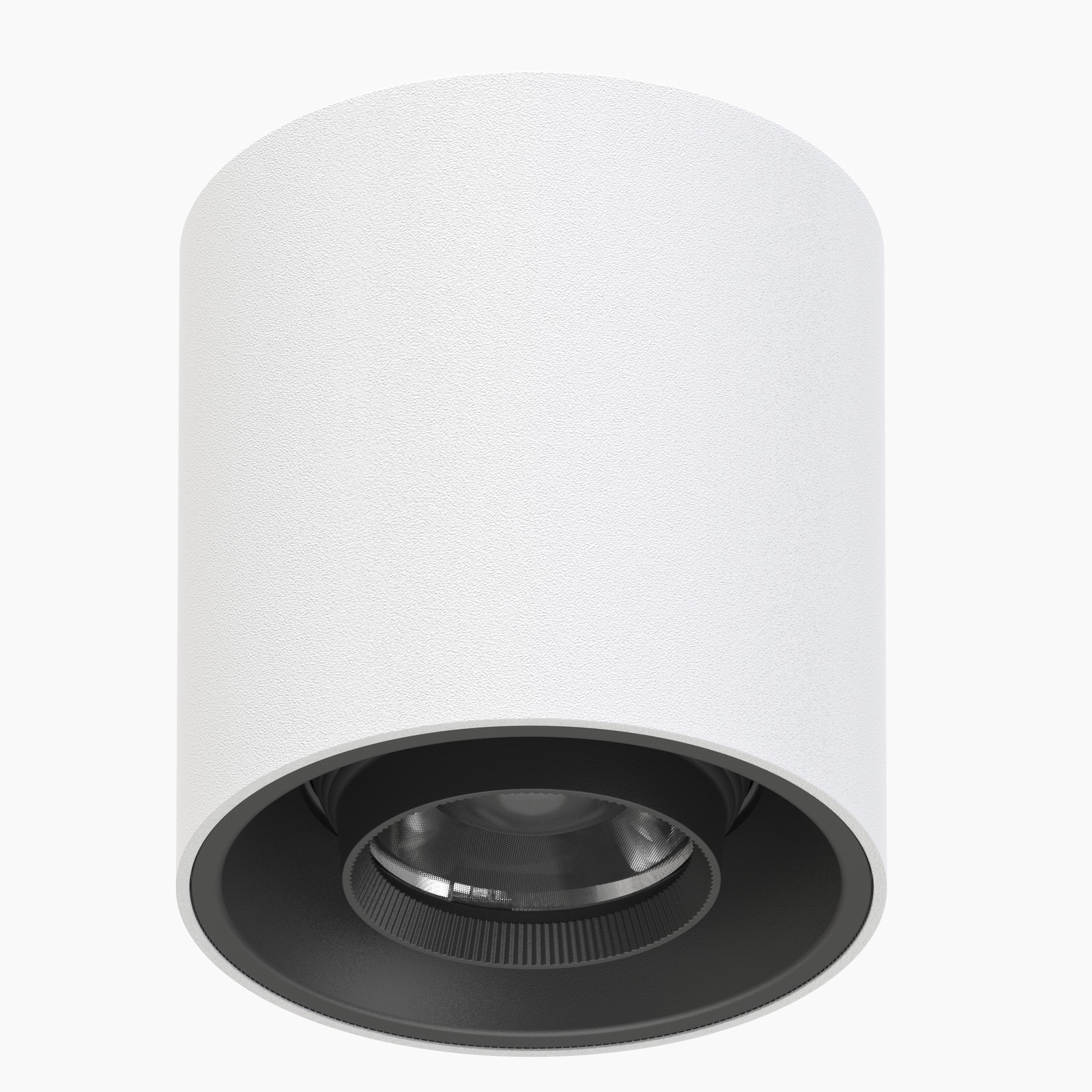

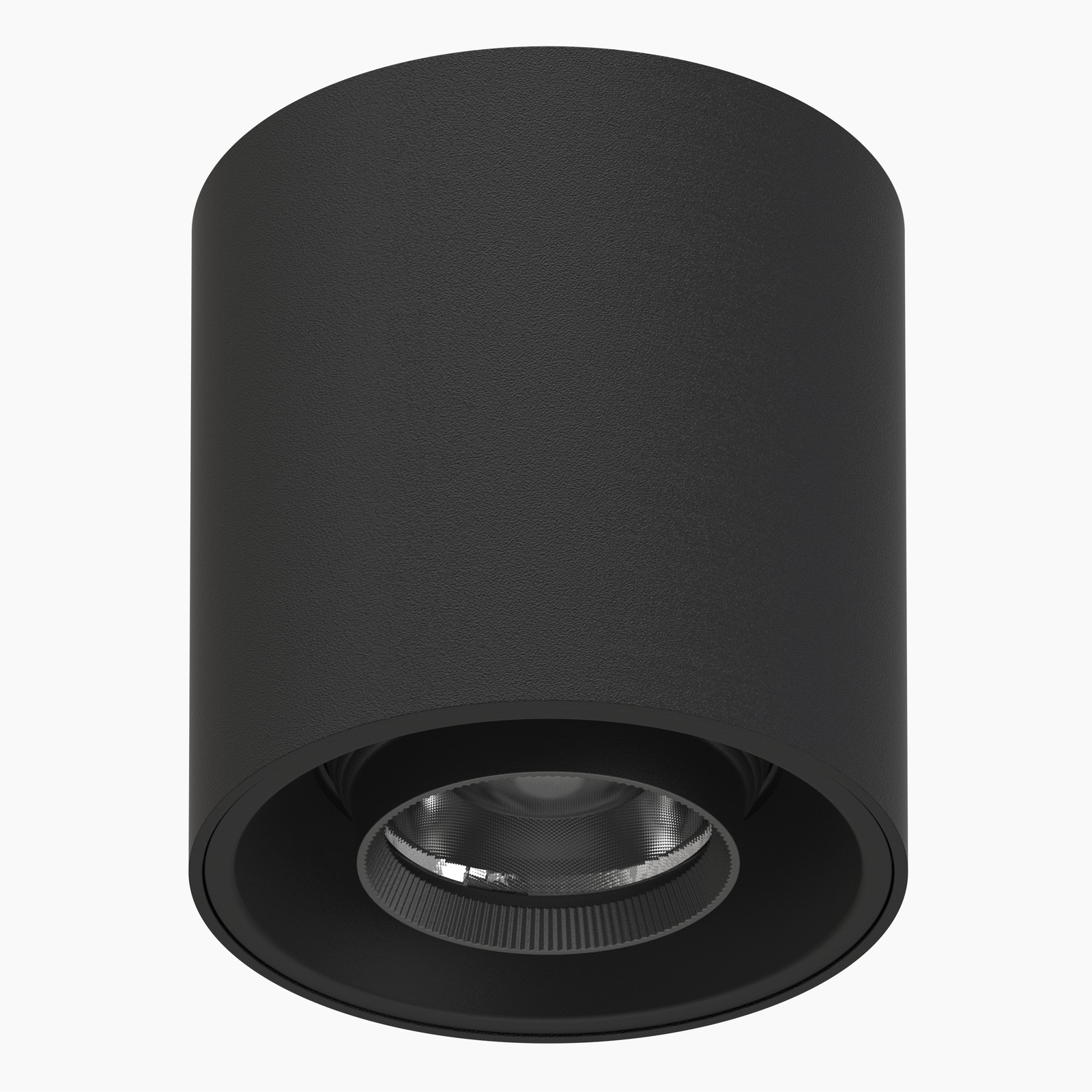

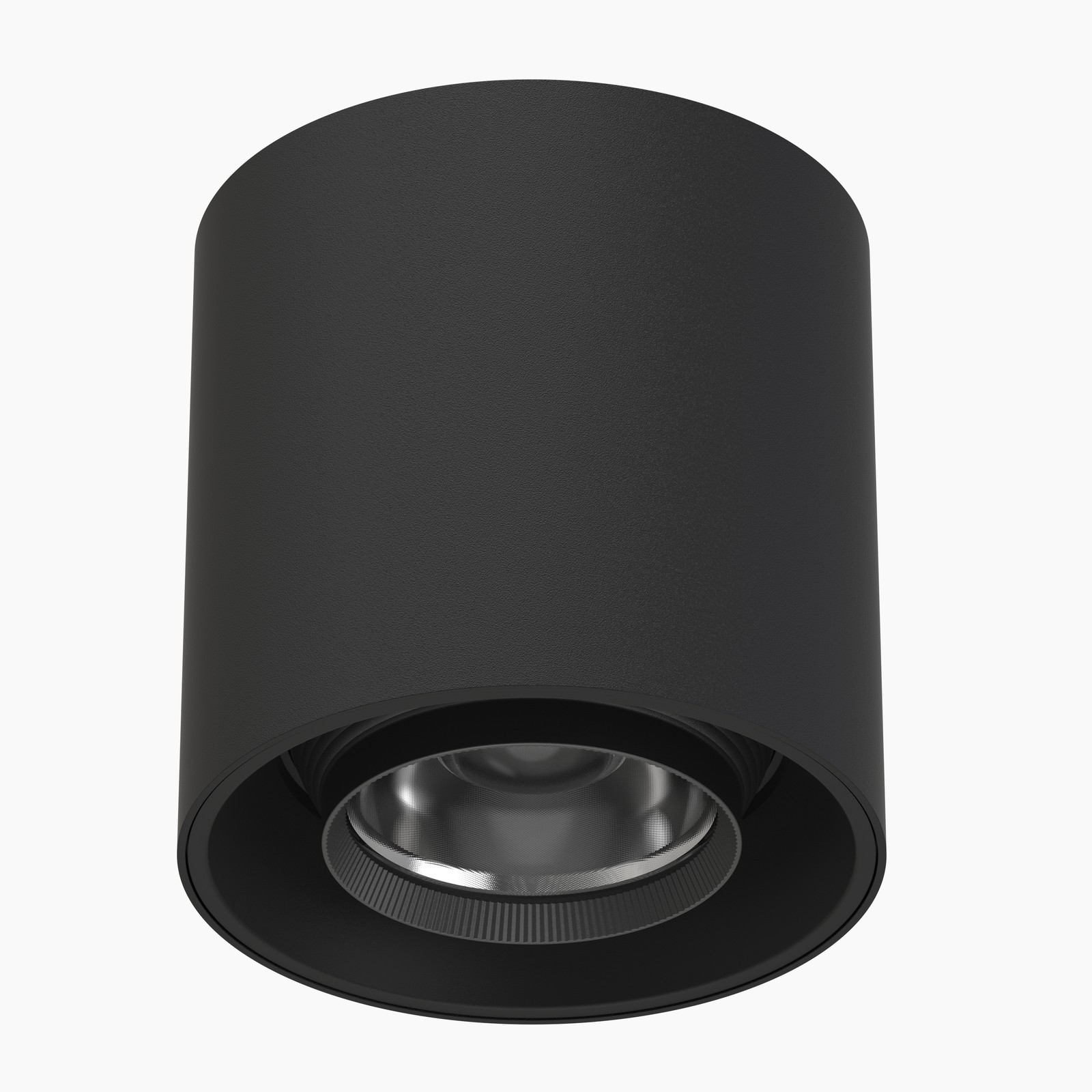

| Models | 2501W / 3001W / 4001W (Round) |
| Power | 10W / 15W / 25W |
| Diameter | Φ74 / Φ90 / Φ111mm |
| Height | 75 / 90 / 110mm |

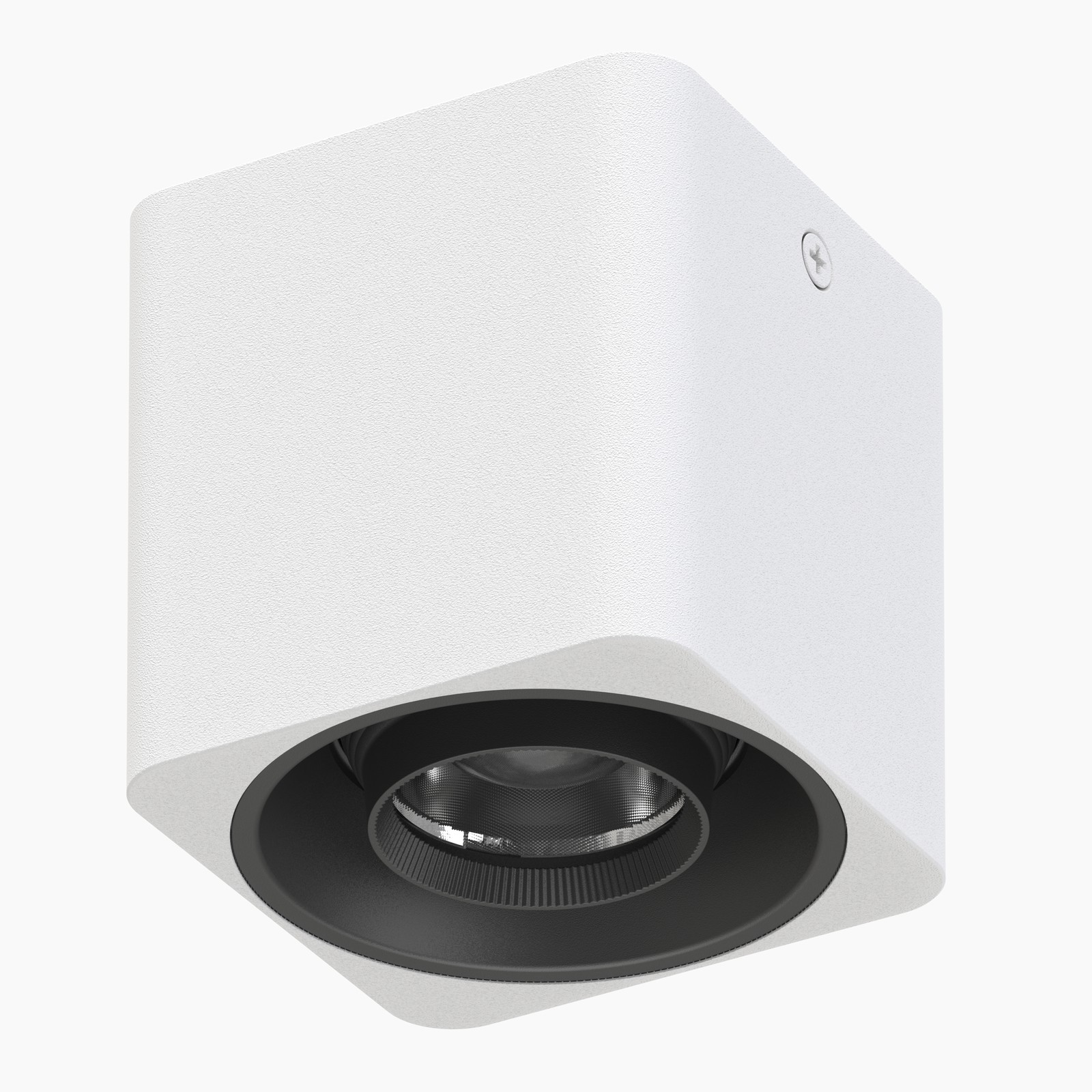

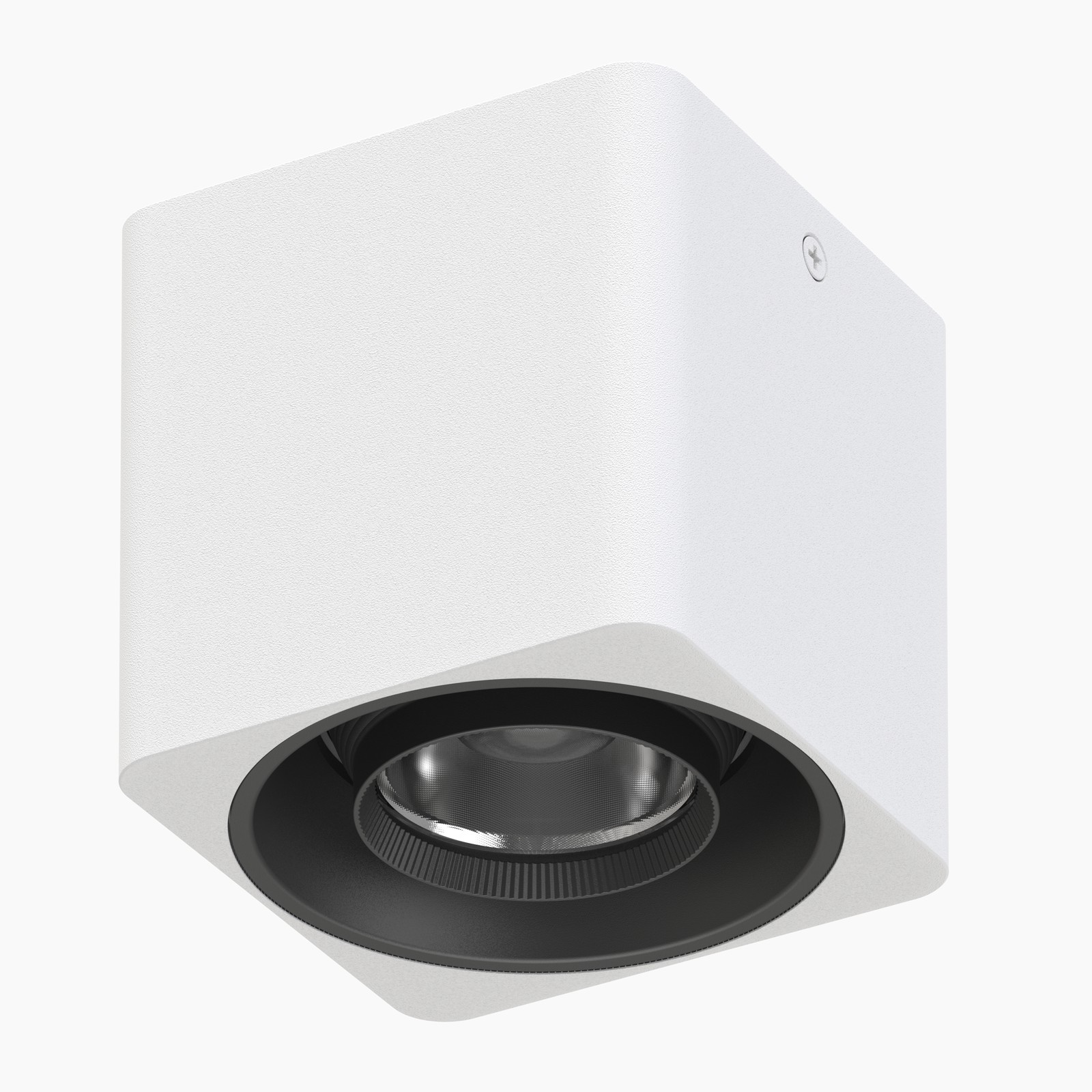

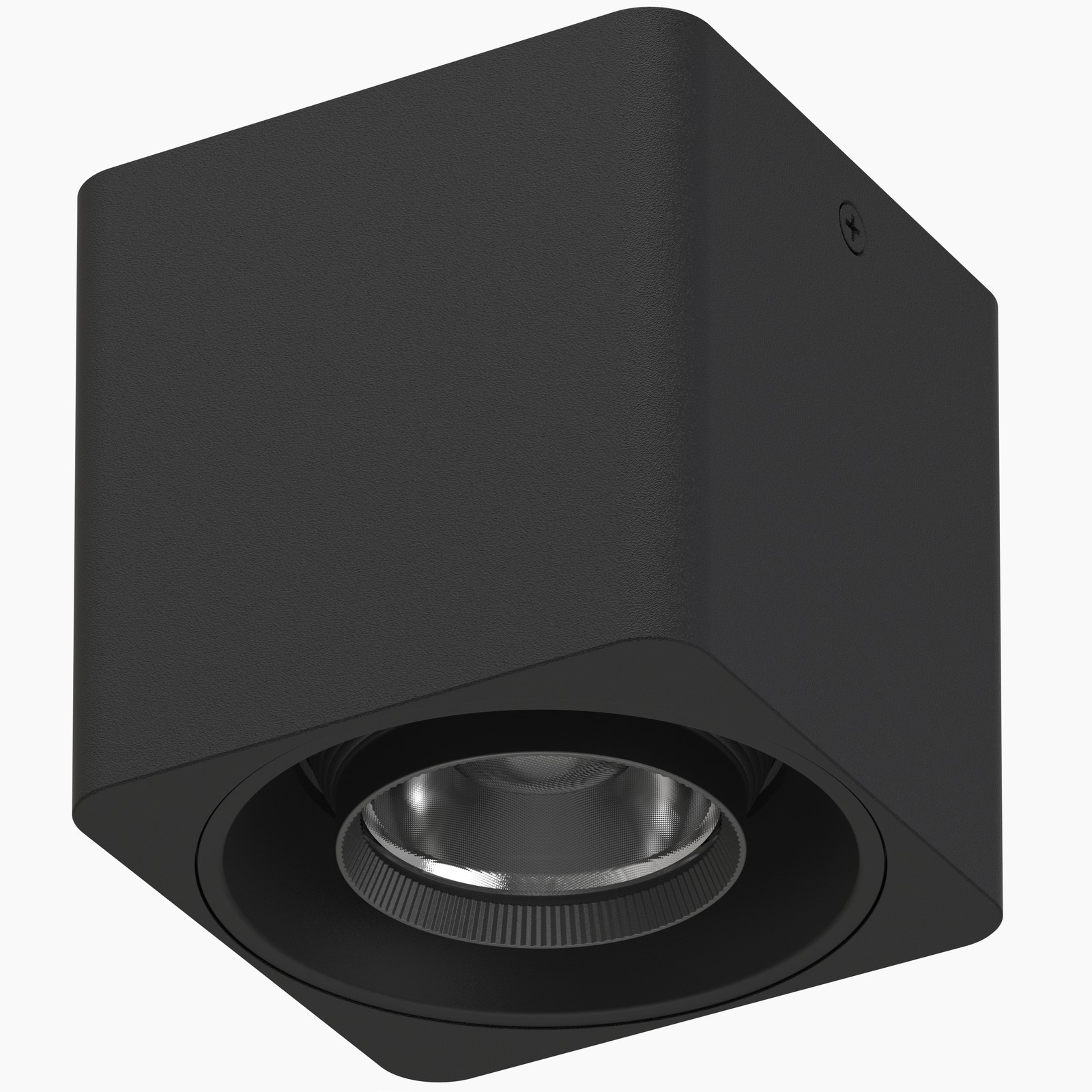

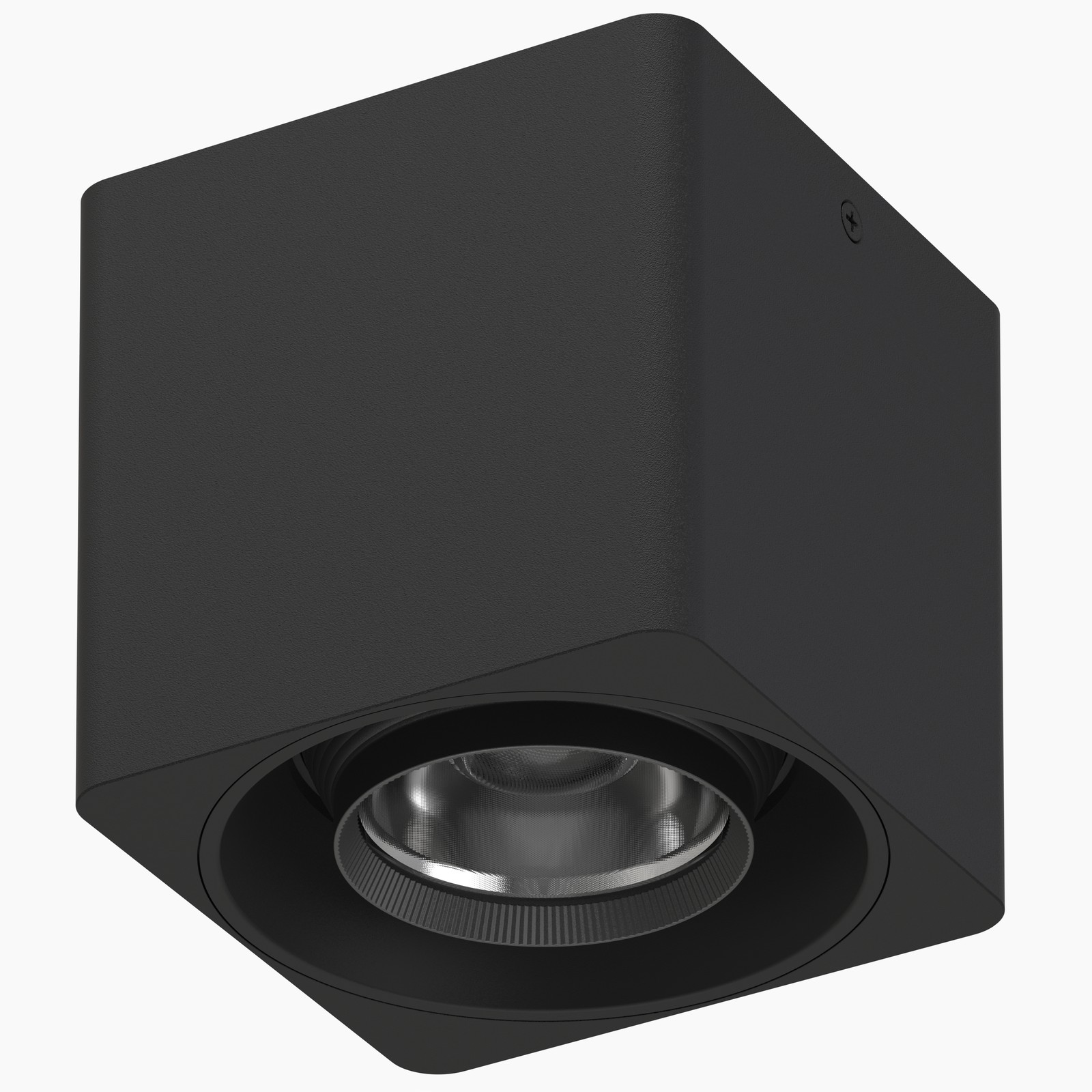

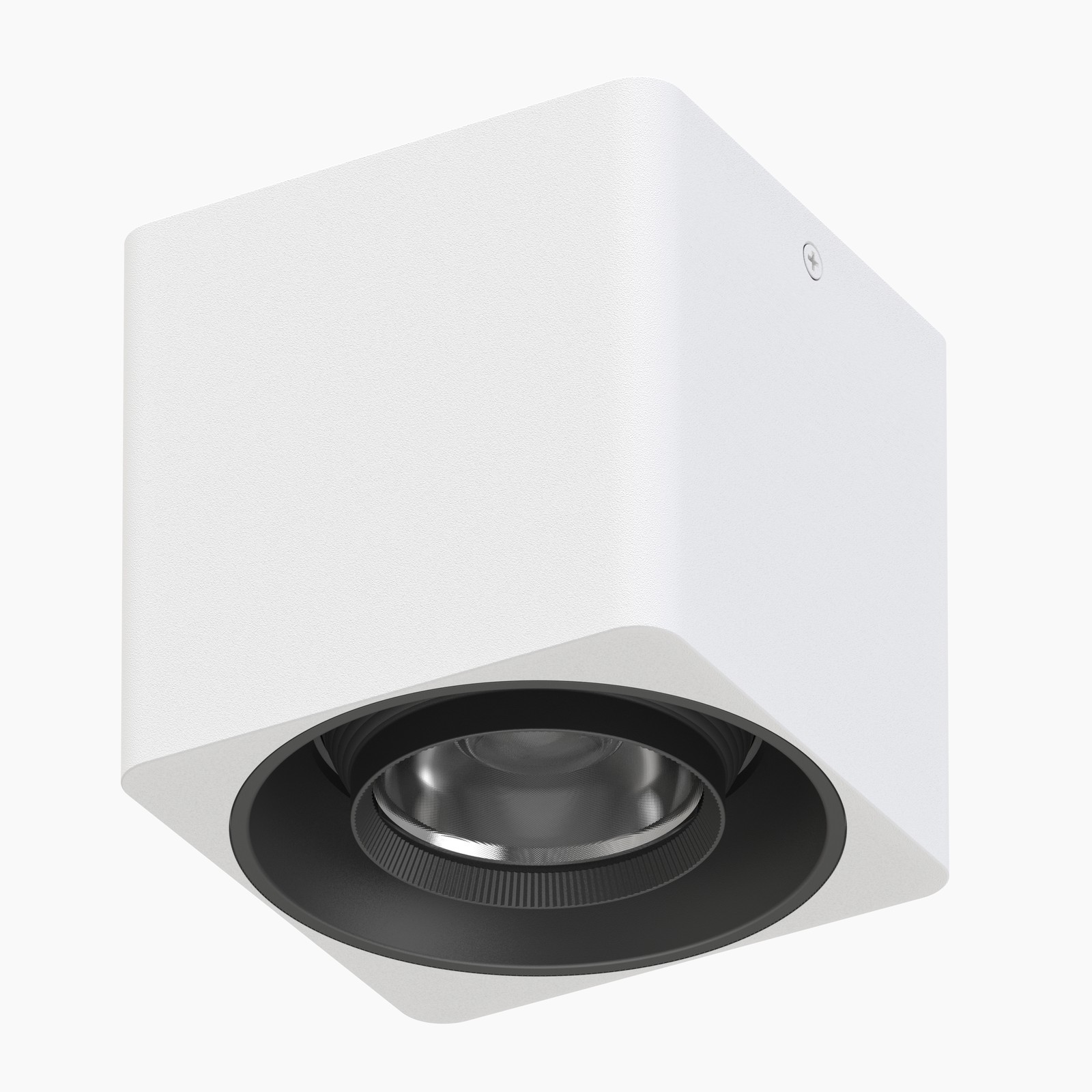

| Models | 2501W-1 / 3001W-1 / 4001W-1 (Square) |
| Power | 12W / 18W / 28W |
| Size | 73×73 / 92×92 / 113×113mm |
| Height | 75 / 90 / 100mm |
| Beam Angle | 15° / 24° / 36° |
| Adjustment | Fixed / Swivel adjustable |
| Colors | White / Sand-black |
| CCT | 3000K / 4000K / 6000K |
| Applications | No-ceiling spaces / Corridor / Store / Office |
Key Highlights
1. No cutout, quick installation.
2. Round/square design, white/black finish.

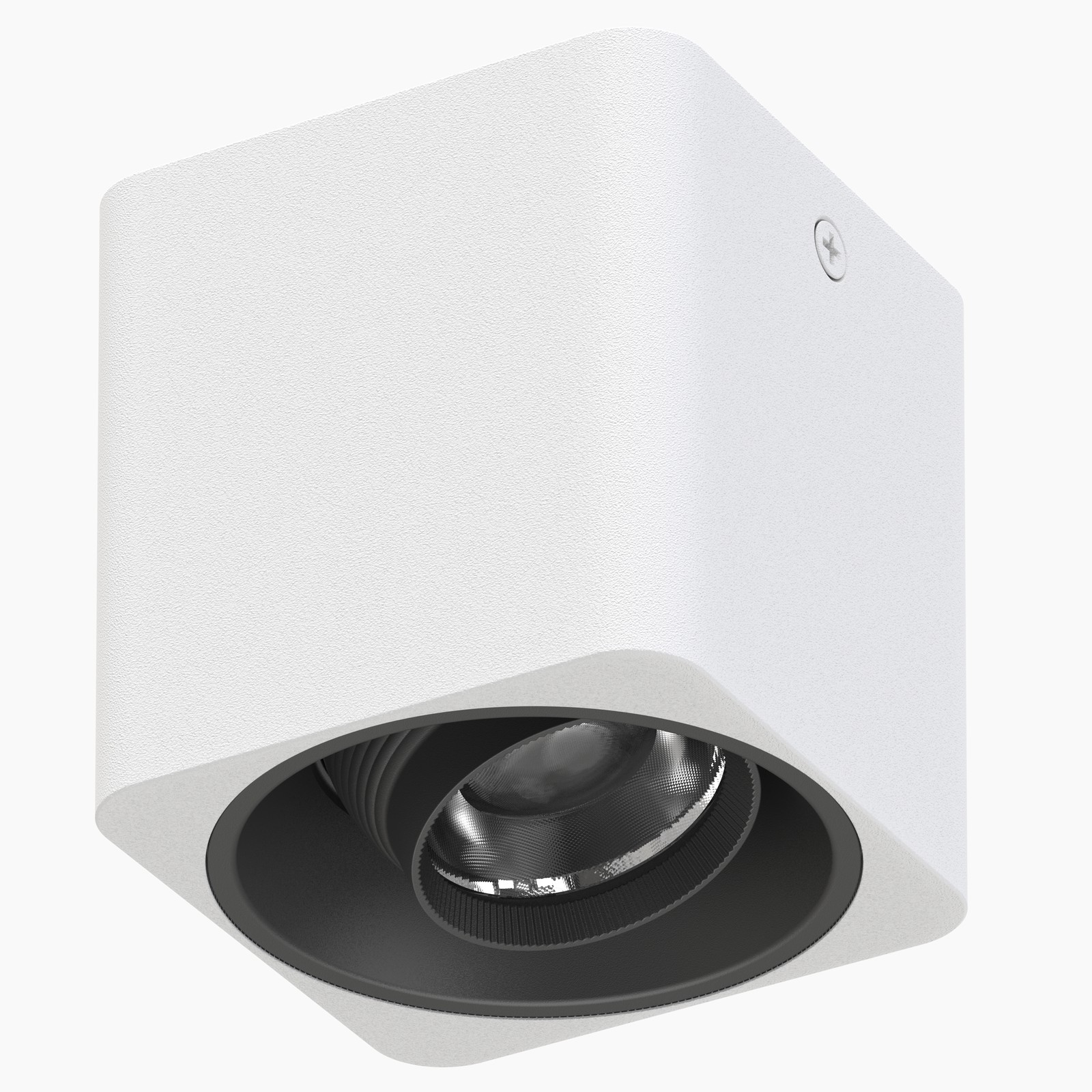

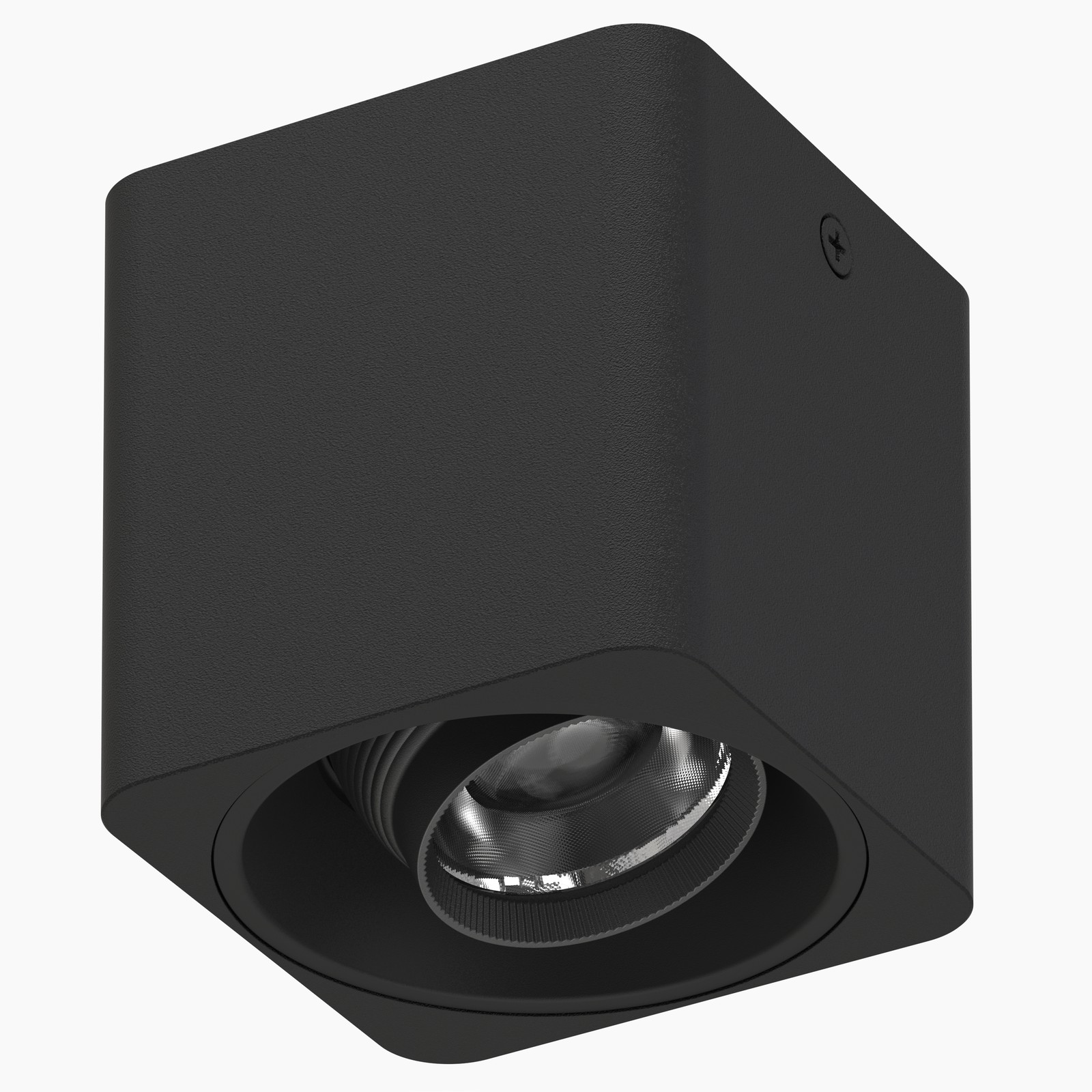

3. Swivel version adjustable.
4. Anti-glare soft light, OEM/ODM customization.
Square Installation
